简介设计一个具有WebSocket断线重连功能的页面，包含连接状态显示、消息发送和接收区域，以及连接控制按钮。
设计思路
使用直观的UI展示连接状态（连接/断开）
实现自动重连机制，包含指数退避策略
提供手动连接/断开控制
显示连接日志和消息历史

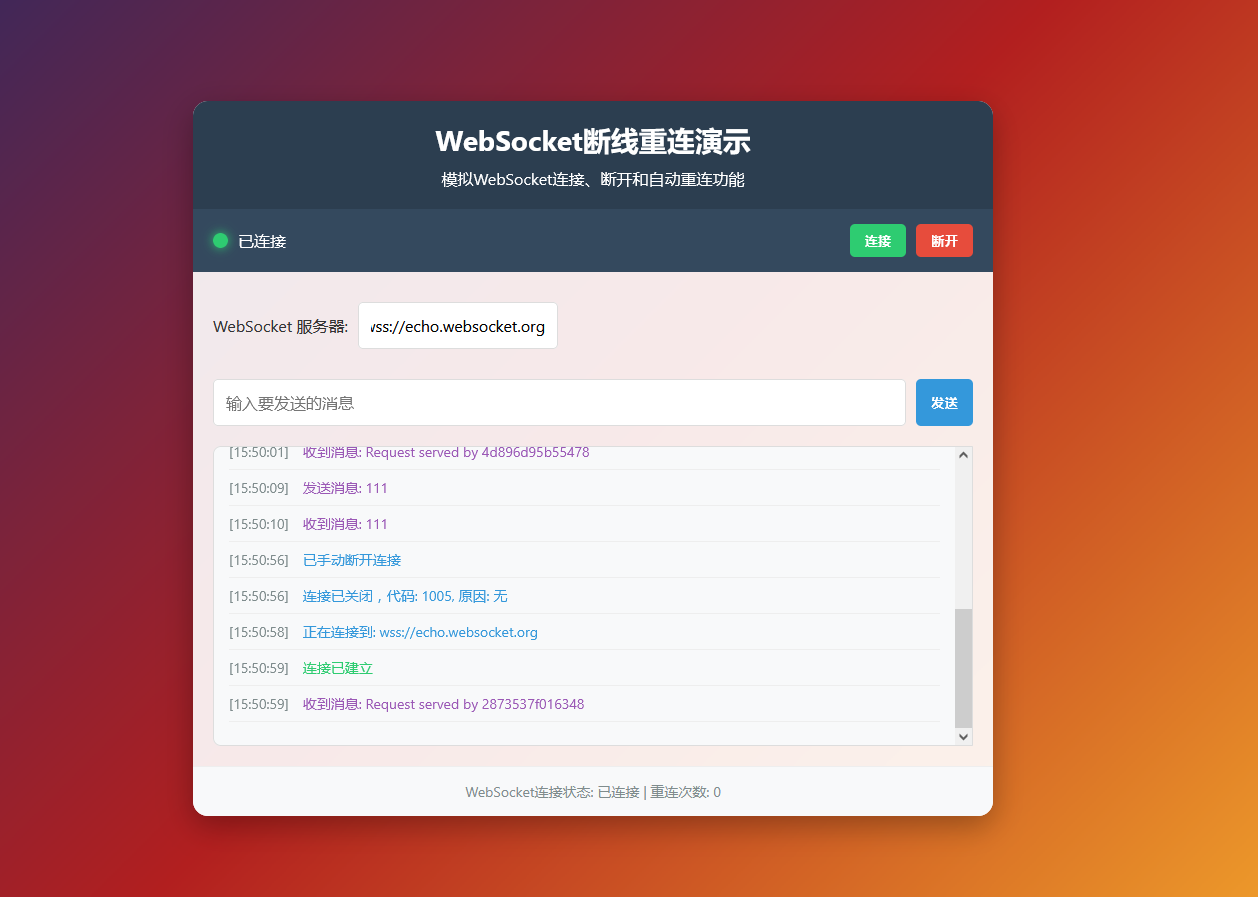

实现效果图
alt
实现代码
<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>WebSocket断线重连演示</title>
    <style>
        * {
            margin: 0;
            padding: 0;
            box-sizing: border-box;
            font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
        }

        body {
            background: linear-gradient(135deg, #1a2a6c, #b21f1f, #fdbb2d);
            min-height: 100vh;
            display: flex;
            justify-content: center;
            align-items: center;
            padding: 20px;
            color: #333;
        }

        .container {
            width: 100%;
            max-width: 800px;
            background: rgba(255, 255, 255, 0.9);
            border-radius: 15px;
            box-shadow: 0 10px 30px rgba(0, 0, 0, 0.3);
            overflow: hidden;
        }

        header {
            background: #2c3e50;
            color: white;
            padding: 20px;
            text-align: center;
        }

        h1 {
            font-size: 28px;
            margin-bottom: 10px;
        }

        .status-bar {
            display: flex;
            justify-content: space-between;
            align-items: center;
            padding: 15px 20px;
            background: #34495e;
            color: white;
        }

        .status-indicator {
            display: flex;
            align-items: center;
        }

        .indicator {
            width: 15px;
            height: 15px;
            border-radius: 50%;
            margin-right: 10px;
            background: #e74c3c;
        }

        .indicator.connected {
            background: #2ecc71;
            box-shadow: 0 0 10px #2ecc71;
        }

        .controls {
            display: flex;
            gap: 10px;
        }

        button {
            padding: 8px 15px;
            border: none;
            border-radius: 5px;
            cursor: pointer;
            font-weight: bold;
            transition: all 0.3s;
        }

        .connect-btn {
            background: #2ecc71;
            color: white;
        }

        .connect-btn:hover {
            background: #27ae60;
        }

        .disconnect-btn {
            background: #e74c3c;
            color: white;
        }

        .disconnect-btn:hover {
            background: #c0392b;
        }

        .main {
            display: flex;
            flex-direction: column;
            padding: 20px;
            gap: 20px;
        }

        .message-box {
            display: flex;
            gap: 10px;
        }

        input {
            flex: 1;
            padding: 12px;
            border: 1px solid #ddd;
            border-radius: 5px;
            font-size: 16px;
        }

        .send-btn {
            background: #3498db;
            color: white;
        }

        .send-btn:hover {
            background: #2980b9;
        }

        .logs {
            background: #f8f9fa;
            border-radius: 8px;
            padding: 15px;
            height: 300px;
            overflow-y: auto;
            font-family: monospace;
            font-size: 14px;
            border: 1px solid #ddd;
        }

        .log-entry {
            margin-bottom: 8px;
            padding-bottom: 8px;
            border-bottom: 1px solid #eee;
        }

        .timestamp {
            color: #7f8c8d;
            margin-right: 10px;
        }

        .info {
            color: #3498db;
        }

        .success {
            color: #2ecc71;
        }

        .error {
            color: #e74c3c;
        }

        .message {
            color: #9b59b6;
        }

        .config {
            display: flex;
            gap: 10px;
            align-items: center;
            flex-wrap: wrap;
            padding: 10px 0;
        }

        .config input {
            flex: none;
            width: 200px;
        }

        footer {
            text-align: center;
            padding: 15px;
            color: #7f8c8d;
            font-size: 14px;
            border-top: 1px solid #eee;
            background: #f8f9fa;
        }

        @media (max-width: 600px) {
            .status-bar {
                flex-direction: column;
                gap: 10px;
            }

            .config {
                flex-direction: column;
                align-items: flex-start;
            }

            .config input {
                width: 100%;
            }
        }
    </style>
</head>
<body>
    <div class="container">
        <header>
            <h1>WebSocket断线重连演示</h1>
            <p>模拟WebSocket连接、断开和自动重连功能</p>
        </header>

        <div class="status-bar">
            <div class="status-indicator">
                <div class="indicator" id="statusIndicator"></div>
                <span id="statusText">已断开连接</span>
            </div>
            <div class="controls">
                <button class="connect-btn" id="connectBtn">连接</button>
                <button class="disconnect-btn" id="disconnectBtn">断开</button>
            </div>
        </div>

        <div class="main">
            <div class="config">
                <label>WebSocket 服务器:</label>
                <input type="text" id="serverUrl" value="wss://echo.websocket.org" placeholder="输入WebSocket服务器URL">
            </div>

            <div class="message-box">
                <input type="text" id="messageInput" placeholder="输入要发送的消息">
                <button class="send-btn" id="sendBtn">发送</button>
            </div>

            <div class="logs" id="logContainer">
                <!-- 日志将在这里显示 -->
            </div>
        </div>

        <footer>
            <p>WebSocket连接状态: <span id="connectionStatus">已断开</span> | 重连次数: <span id="reconnectCount">0</span></p>
        </footer>
    </div>

    <script>
        document.addEventListener('DOMContentLoaded', function() {
            // 元素引用
            const statusIndicator = document.getElementById('statusIndicator');
            const statusText = document.getElementById('statusText');
            const connectBtn = document.getElementById('connectBtn');
            const disconnectBtn = document.getElementById('disconnectBtn');
            const sendBtn = document.getElementById('sendBtn');
            const messageInput = document.getElementById('messageInput');
            const logContainer = document.getElementById('logContainer');
            const serverUrlInput = document.getElementById('serverUrl');
            const connectionStatus = document.getElementById('connectionStatus');
            const reconnectCount = document.getElementById('reconnectCount');

            // WebSocket变量
            let ws = null;
            let reconnectAttempts = 0;
            let maxReconnectAttempts = 5;
            let reconnectInterval = 3000; // 重连间隔(毫秒)
            let autoReconnect = true;
            let isConnected = false;

            // 添加日志
            function addLog(message, type = 'info') {
                const logEntry = document.createElement('div');
                logEntry.className = `log-entry ${type}`;

                const timestamp = new Date().toLocaleTimeString();
                logEntry.innerHTML = `<span class="timestamp">[${timestamp}]</span> ${message}`;

                logContainer.appendChild(logEntry);
                logContainer.scrollTop = logContainer.scrollHeight;
            }

            // 更新状态显示
            function updateStatus(connected) {
                isConnected = connected;
                if (connected) {
                    statusIndicator.classList.add('connected');
                    statusText.textContent = '已连接';
                    connectionStatus.textContent = '已连接';
                    connectBtn.disabled = true;
                    disconnectBtn.disabled = false;
                    sendBtn.disabled = false;
                } else {
                    statusIndicator.classList.remove('connected');
                    statusText.textContent = '已断开连接';
                    connectionStatus.textContent = '已断开';
                    connectBtn.disabled = false;
                    disconnectBtn.disabled = true;
                    sendBtn.disabled = true;
                }
            }

            // 连接WebSocket
            function connect() {
                if (isConnected) return;

                const url = serverUrlInput.value || 'wss://echo.websocket.org';

                try {
                    addLog(`正在连接到: ${url}`, 'info');
                    ws = new WebSocket(url);

                    ws.onopen = function() {
                        addLog('连接已建立', 'success');
                        updateStatus(true);
                        reconnectAttempts = 0;
                        reconnectCount.textContent = reconnectAttempts;
                    };

                    ws.onmessage = function(event) {
                        addLog(`收到消息: ${event.data}`, 'message');
                    };

                    ws.onclose = function(event) {
                        addLog(`连接已关闭，代码: ${event.code}, 原因: ${event.reason || '无'}`, 'info');
                        updateStatus(false);

                        // 自动重连逻辑
                        if (autoReconnect && reconnectAttempts < maxReconnectAttempts) {
                            reconnectAttempts++;
                            reconnectCount.textContent = reconnectAttempts;
                            addLog(`尝试重新连接 (${reconnectAttempts}/${maxReconnectAttempts})...`, 'info');

                            // 使用指数退避策略增加重连间隔
                            const delay = reconnectInterval * Math.pow(1.5, reconnectAttempts - 1);
                            setTimeout(connect, delay);
                        } else if (reconnectAttempts >= maxReconnectAttempts) {
                            addLog('已达到最大重连尝试次数，停止重连', 'error');
                        }
                    };

                    ws.onerror = function(error) {
                        addLog('连接错误', 'error');
                        console.error('WebSocket错误:', error);
                    };
                } catch (error) {
                    addLog(`连接失败: ${error.message}`, 'error');
                }
            }

            // 断开WebSocket
            function disconnect() {
                autoReconnect = false;
                if (ws) {
                    ws.close();
                    ws = null;
                }
                updateStatus(false);
                addLog('已手动断开连接', 'info');
            }

            // 发送消息
            function sendMessage() {
                const message = messageInput.value.trim();
                if (!message || !isConnected) return;

                try {
                    ws.send(message);
                    addLog(`发送消息: ${message}`, 'message');
                    messageInput.value = '';
                } catch (error) {
                    addLog(`发送失败: ${error.message}`, 'error');
                }
            }

            // 事件监听
            connectBtn.addEventListener('click', connect);
            disconnectBtn.addEventListener('click', disconnect);
            sendBtn.addEventListener('click', sendMessage);

            messageInput.addEventListener('keypress', function(e) {
                if (e.key === 'Enter') {
                    sendMessage();
                }
            });

            // 初始化状态
            updateStatus(false);
            addLog('准备就绪，请输入WebSocket服务器URL并点击连接', 'info');
        });
    </script>
</body>
</html>
功能说明
连接管理：
- 可以手动连接/断开WebSocket
- 显示当前连接状态
消息功能：
- 发送消息到WebSocket服务器
- 显示接收到的消息
断线重连：
- 自动检测连接断开
- 使用指数退避策略进行重连
- 显示重连次数和状态
日志系统：
- 记录所有连接事件和消息
- 使用颜色区分不同事件类型
使用说明
在输入框中输入WebSocket服务器URL（默认使用wss://echo.websocket.org）
点击"连接"按钮建立连接
在消息输入框中输入文本并点击"发送"或按Enter键
观察连接状态和消息日志
可以手动断开连接或测试自动重连功能
